In the Create phasing interface, go to the “Connected Objects” tab and click on the button .

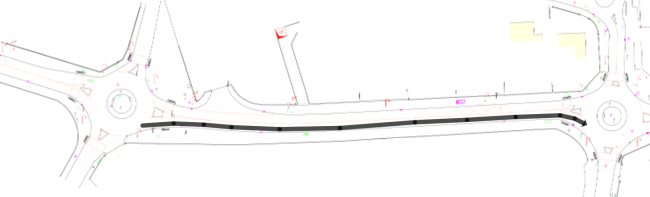

Draw your polyline (here the traffic lane in superposition of the southern roadway), point by point with the left click. Once the last point has been positioned, exit the plot mode with a right-click.

In the options that appear on the right click, you can specify which arrow to display in the case of a one-way traffic lane

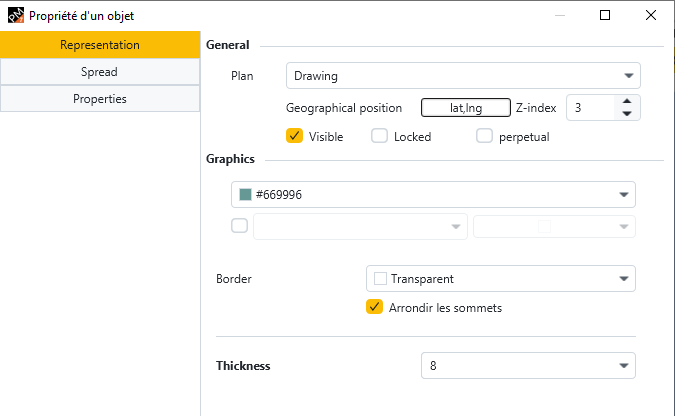

For more readability, it is possible to change the style of the polyline: just hover over it and right-click on one of its segments, then choose Settings . Here we will change its color:

To rename the connected objects, they must be localized on the map.

To do this, go to the “Connected objects on selected drawing” tab, of the bottom menu of the Create phasing window, and use the visibility checkmarks to locate your connected object. Double-click on the name to rename it.

Here we rename the polyline located at the top to “Traffic North lane Phase 5”:
