Connection to a Network license

Caution:

1/ Connecting to a network license requires that it has already been activated by following the procedure Activating a network license

2/ To install Phase Manager it is highly recommended to have administrator rights

3/ To use the license it is necessary to MODIFY rights on the UNC license directory

1/ Installation of Phase Manager

Donwload Phase Manager (click here for last release). Right click on the executable than run it with Administrator rights

Once launched, choose the installation language:

Skip the welcome screen by clicking on Next :

Read then accept the license agreement to continue the installation by clicking on Next :

By default the setup will ask you to install Phase Manager in : C:\Program Files (x86)\PhaseManager X
If you didn't launch it with admin right , it will propose you to install Phase Manager in : C:\Users\Public\Documents\PhaseManager7

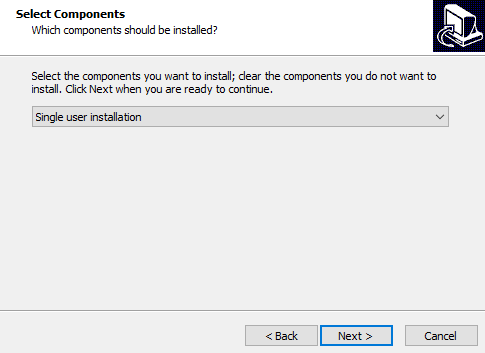

Choose 'Single user installation'

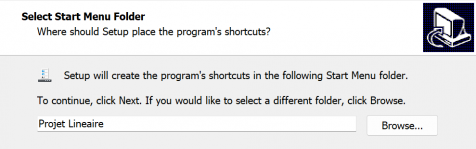

Validate the Start Menu Folder screen by clicking on Next :

Choose and validate the icons creation screen by clicking Next :

On the following screen click on Install then once installation is complete, click on Finish


2/ Connection to the network license

Once Phase Manager is installed, double-click on its icon to launch it.

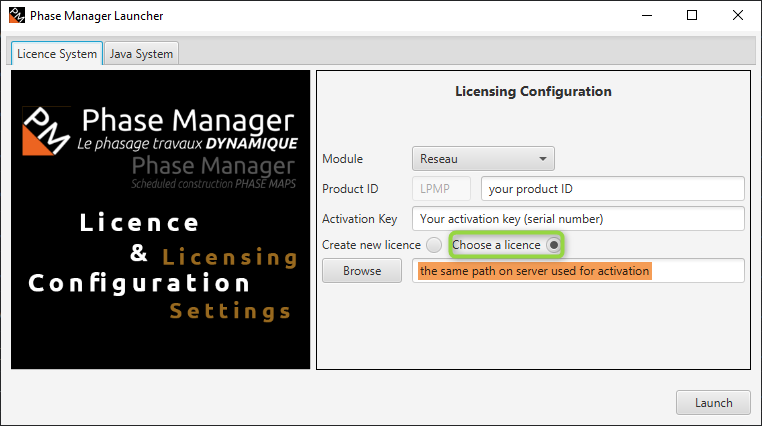

At first launch, the license configurator will display:

To connect to your network license, you will need to fill in the following fields:

Module

Choose Network | Réseau:
FYI : If you want to test Phase Manager for 14 days, choose 'Demo'.

Product ID

Fill in the Product ID that's been sent to you by Projet Linéaire:

  • licence pattern : LPMM-00NNN0 X 00abcDEF (NNN is the number of your license, and X the version)
  • only paste the right part of your Product-ID, after the '-'

Activation key

Fill in the Serial number sent to you by Projet Linéaire or reseller.

Licence

Tick “Choose a licence”, then indicate the location of the license file: Indicate its UNC path using the following pattern : \\SERVER\SHARE\FOLDER**:

Click now on the button Launch to run Phase Manager.
