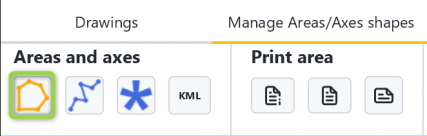

Click on the “Create area” button in the Manage Areas/Axes shapes tab:

Then define your polygon's nodes using the mouse left button. A right-click will close the polygon and finish your area creation.

A window appears to associate the shape you just created to an existing area, or to a new area:

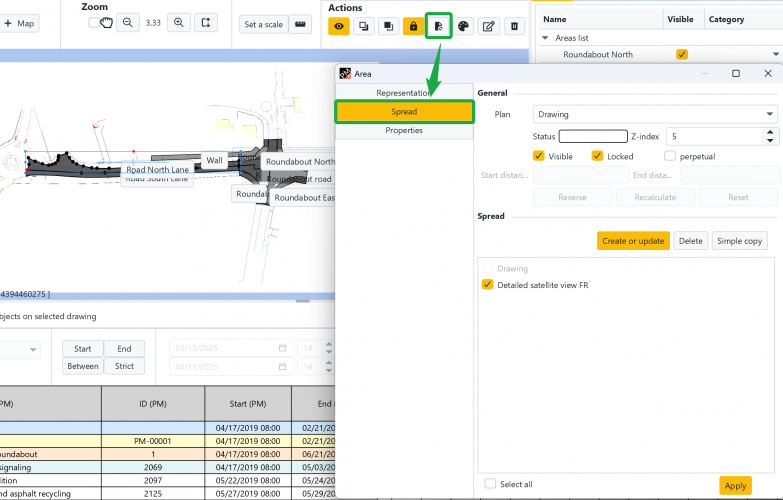

Beware ! By default the area shape is only attached to the drawing on which it has been drawn. To attach it to other plans, left-click on the area then click on the Spread button(here we also associate the area shape to the “Initial situation” drawing:

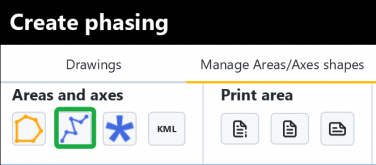

Click on the “Create axis” button in the Manage Areas/Axes shapes tab:

Then define your axis nodes using the mouse left button. A right-click on the drawing will finish your axis creation.

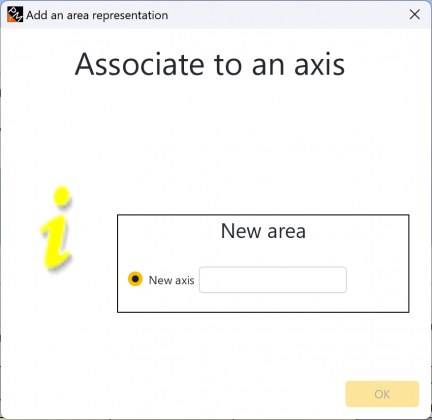

A window appears to associate the shape you just created to an existing axis, or to a new axis:

Note: if the axis segments are displayed in red, it means that the PK of the points that delimit them are not calculated (or that their value is erroneous in the event of a change of direction of the axis for example):

The direction of the axis can be seen at its end arrow, which impacts the calculation of the kilometric points (see below):

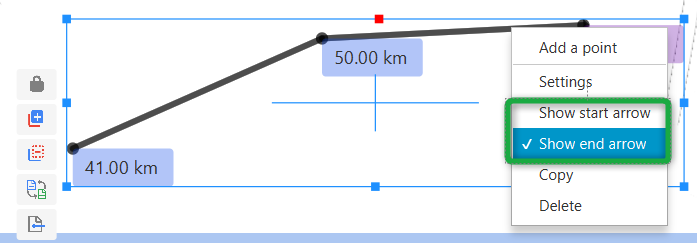

To change the direction of the axis, right-click on it and choose one of the options (exclusive) Show start/end arrow :

If your PKs are no longer consistent, they are displayed in red: repeat the calculation procedure indicated below.

Phase Manager can automaticaly calculate the coordinates of the nodes of your axes.

Two cases are possible:

1/ You set a scale for your drawing

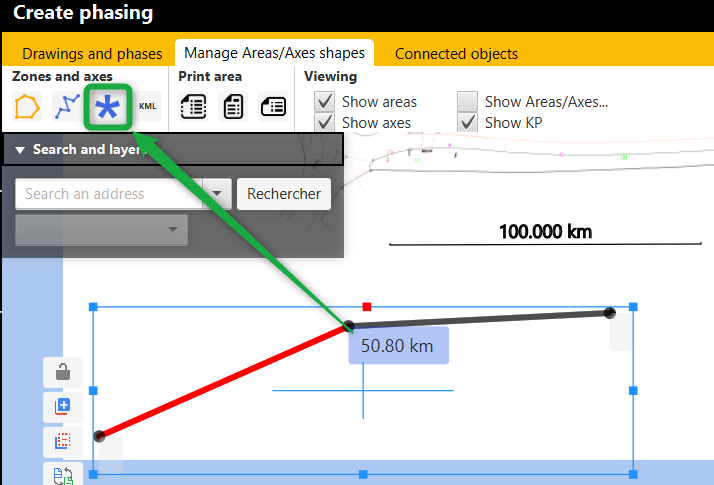

You must set the value of one and only one point of your axis, then click on the “Calculate coordinates” button in the Manage Areas/Axes shapes tab :

Phase Manager then calculates the coordinates of the other points of your axis:

2/ You don't have a scale set for you drawing

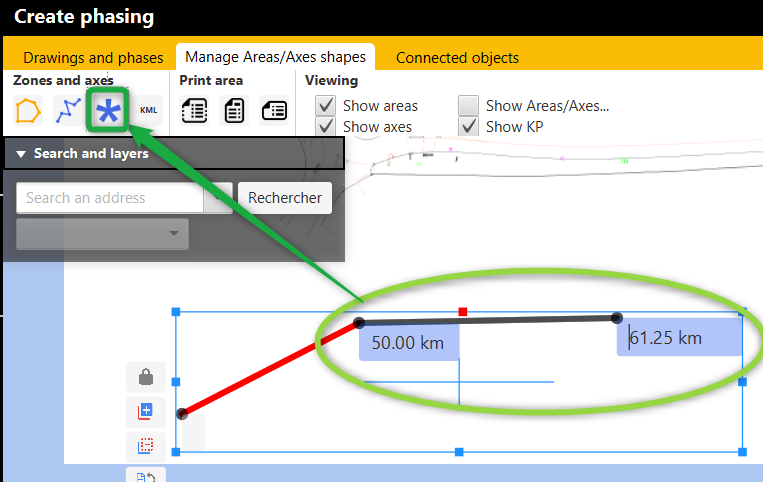

You must set the value of two points of your axis, then click on the Calculate coordinates button :

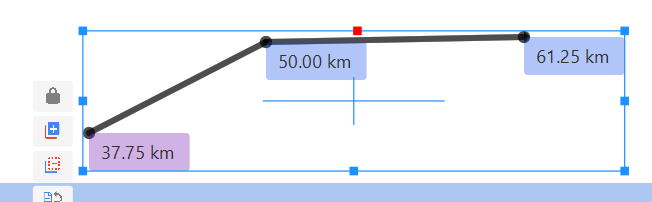

Phase Manager then calculates the coordinates of the other points of your axis:

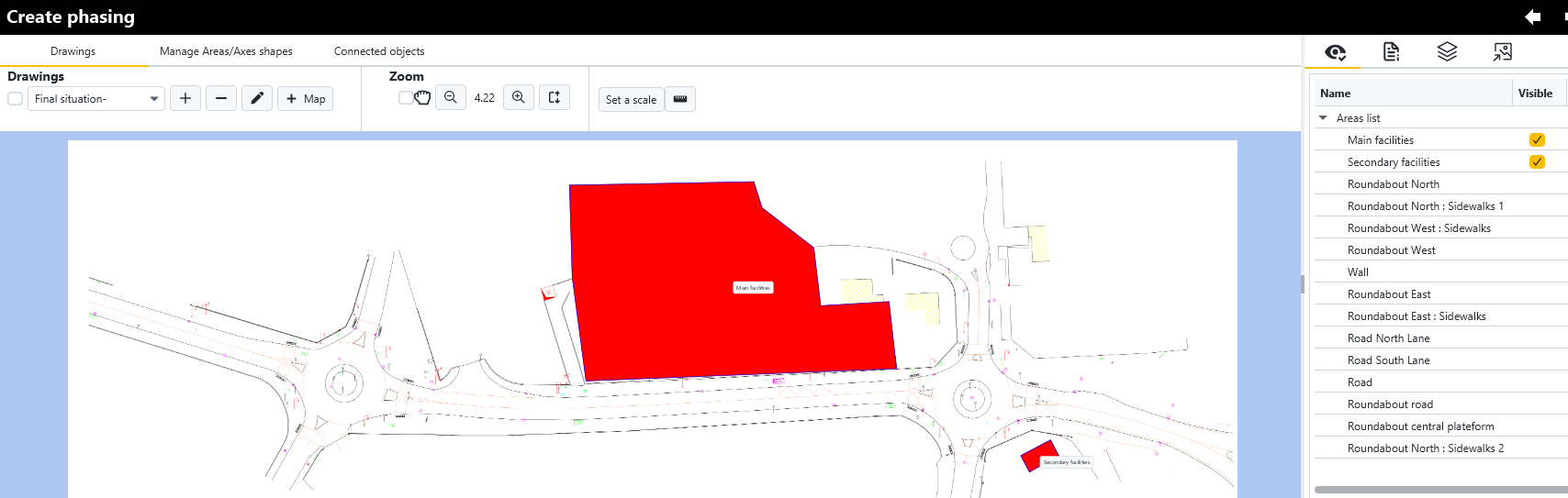

In the Create phasing interface, select your drawing (here 'Final situation'). Both area shapes “Main facilities” and “Secondary facilities” are already drawn:

It can also be seen in the list of areas in the right panel that areas associated with imported activities have been created, but have no representation on this drawing (the 'Visible' checkbox is missing).

Go to the Manage Areas/Axes shapes tab and click on the 'KML' button:

We'll import here the Tutorial areas source EN.kml that lives in the 'Tutoriel“ folder of your software.

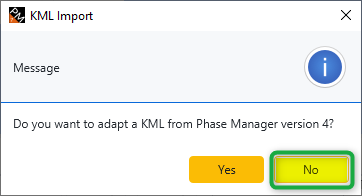

In the next window, as it is a KML exported from Phase Manager 4, click on NO:

Note : you would answer YES if the KML was to be exported from Phase Manager 4 in the case of an update of a V4 project to version 5.

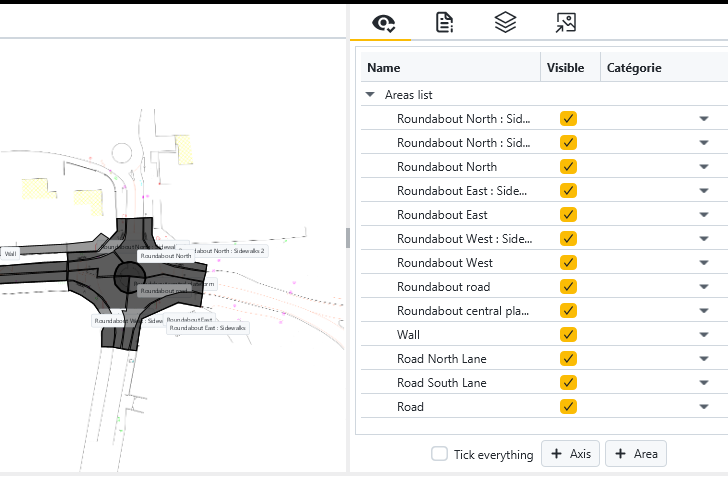

All areas have proprely been imported:

Areas and axes can be moved easily with the mouse.
Be careful, after their creation the areas/axes are locked by default, which is observed with the shape of the padlock-shaped button:

- Open: authorized move
- Closed: move is locked

In previous versions of Phase Manager, a newly created area/axis was automatically replicated on all drawings.

Since Phase Manager 3.1, the opposite behaviour has been adopted in order to better control the presence of zones/axes on the drawings.

To spread a new area/axis on all the drawings, remember to use the Spread button which will allow you to choose on which drawings your area/axis will be located.

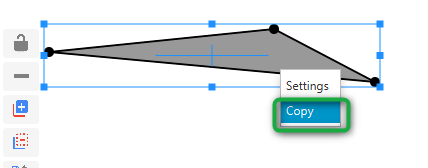

To copy/paste an area or axis, simply right-click on the shape and choose Copy :

Then right-click in an empty space of the drawing, then click on Paste . A dialog window will allow you to define a new area (or axis) or associate the new shape with an existing area (or axis).

The Properties button allows you to change the colors and line types of your areas/axes :

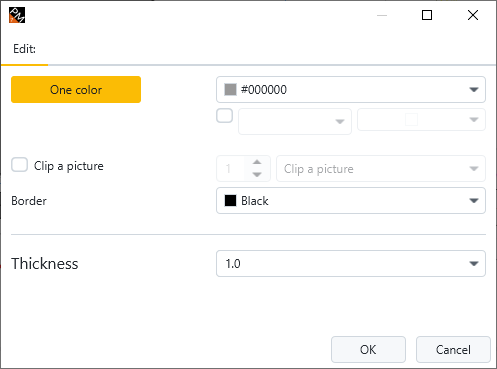

Areas:

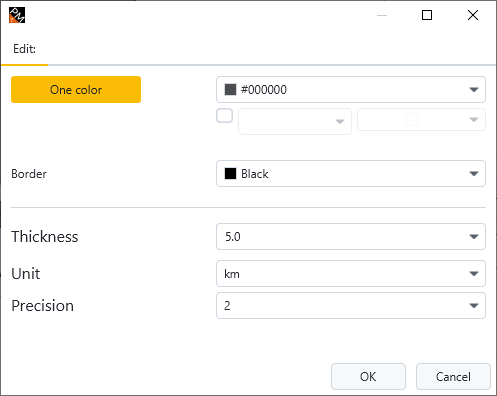

Axes :

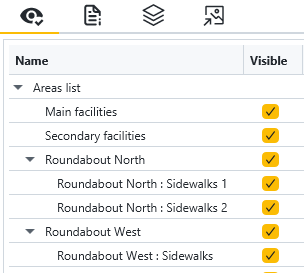

In the right-side pane you can view all the areas/axes of your project as they are added. Areas/axes already associated with a shape have a checkbox “Visible”.

• Adjust the visibility of your existing areas/axes when creating new ones in the same place, so as not to overload the interface and be able to locate them easily.

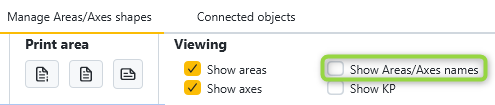

• Also remember to disable the display of areas/axes labels so that you do not inadvertently click on them:

Once all the areas/axes have been created, you can reorganize them hierarchically. Simply drag and drop into the side panel.

You will get a result as follows:
